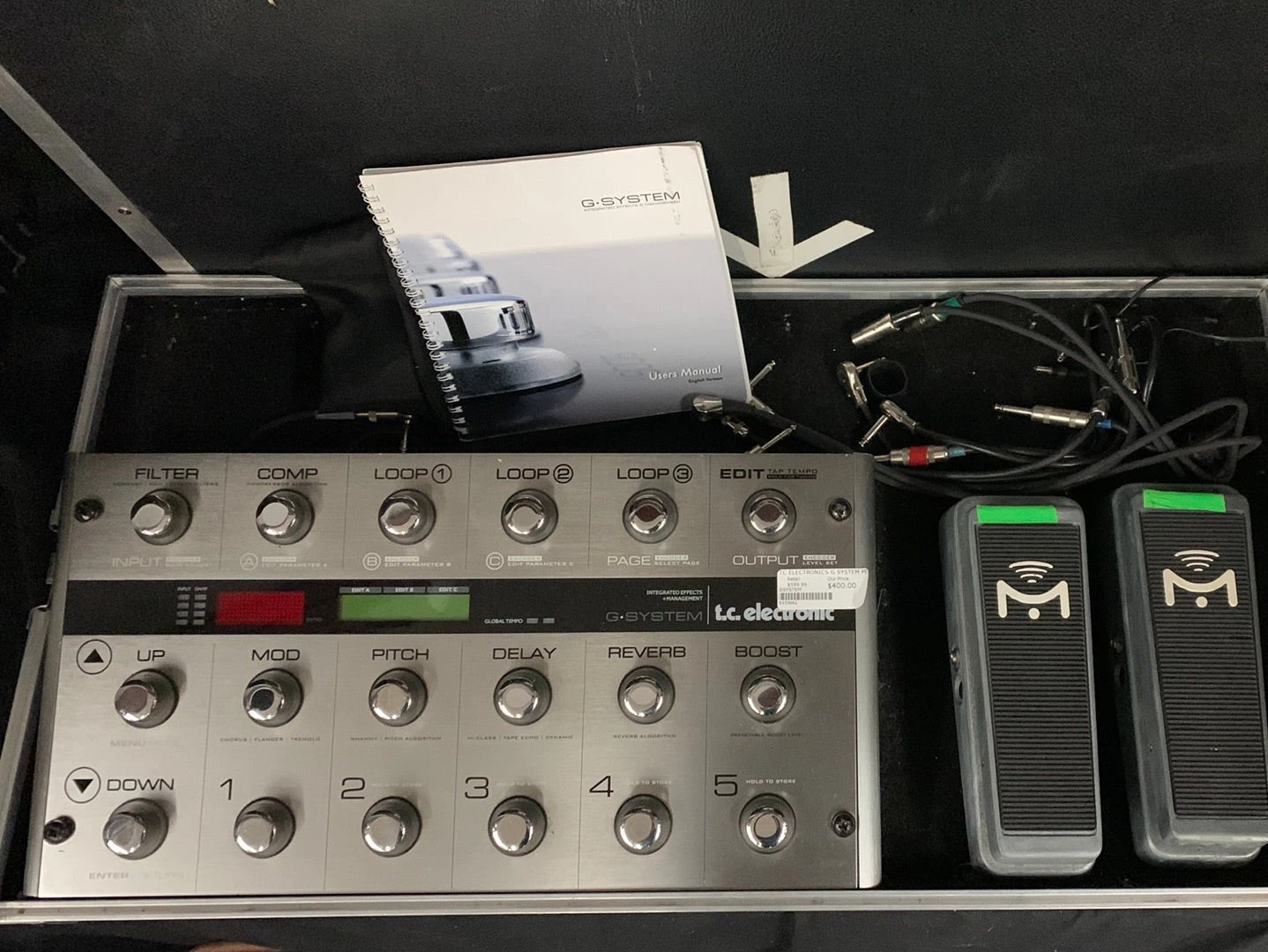

Ultimate floor-based guitar multi-effects processor and management tool is completely configurable and ready to work with your favorite effects pedals
-
Quickly create studio-quality tones with a suite of truly exceptional guitar effects from TC Electronic
-
Massively customizable so you can edit button assignments, trigger multiple changes at once and custom-route your effects to perfectly suit your style
-
4 analog loops and 4 DC 9 V outlets seamlessly integrate your favorite stompboxes, giving you total personalization and control from a single unit
-
Use up to 9 effects simultaneously to get exactly the sound you want
-
Fast and smooth preset changes featuring delay and reverb spillover
-
Additional loop / insertion point dedicated for preamps lets you have your effects at the right spot in the signal chain
-
Rack unit effects processor mounted under the pedalboard can be separated and put into a 19″ rack while the controls stay on the floor for maximum flexibility
-
MIDI-enabled so you can control additional external MIDI units
-
USB for preset and software updates
-

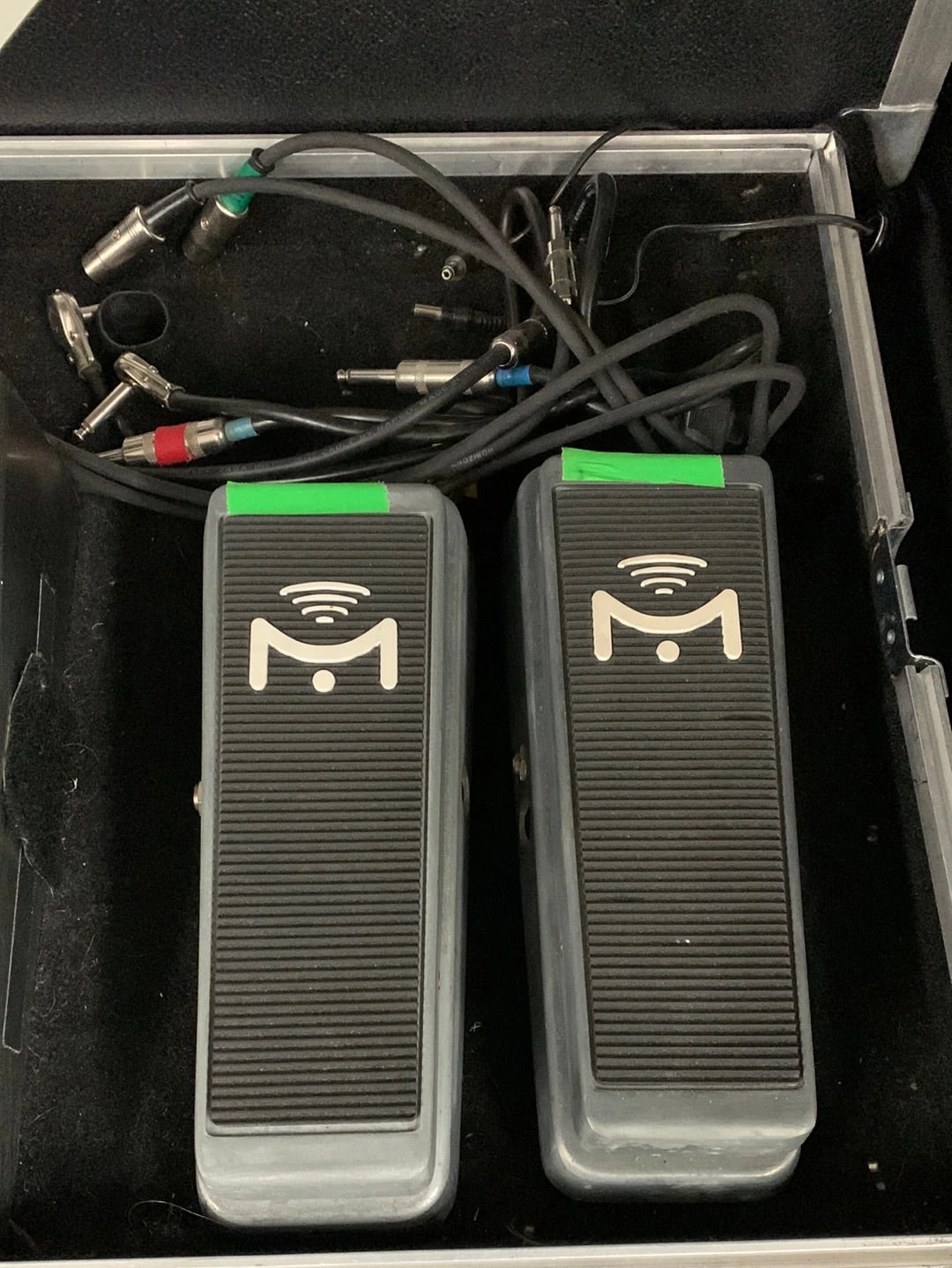

Connections for 2 expression pedals
-
Holds 100 factory presets and has space to store 200 user presets, giving you a wide sonic range
Specification
Instrument Inputs
| Connectors: | Two 1/4″ phone jack, pseudo-balanced |
| Impedance: | 1 Mohm |
| Max. Input Level: | 18 dBu |
| Min. Input Level for 0 dBFS: | -6 dBu |
| Sensitivity: | -6dBu to +18 dBu |
Loop 1-4
| Connectors: | Two 1/4″ phone jacks x 4 |
| Impedance, input/output: | 91 kOhm/100 Ohm |
| Max. Output Level: | 12 dBu |
| Output Ranges: | 6 to 10 dBu |
Insert
| Connectors: | Two 1/4″ phone jacks |
| Impedance, input/output: | 24 kOhm(Balanced 35 kOhm)/ 100Ohm(Balanced 200 Ohm) |
| Max. Output Level: | 12 dBu |
| Output Ranges: | 6 to 10 dBu |
Analog Outputs (L/R)
| Connectors: | Two 1/4″ phone jacks |
| Impedance: | 100 Ohm (Balanced 200 Ohm) |
| Max. Output Level: | 12 dBu |
| Output Ranges: | 0 to 10 dBu |
| Connectors: | RCA Phono (S/PDIF) |
| Formats: | S/PDIF (24 bit), EIAJ CP-340, IEC 958, 75Ohm |
| Sample Rate: | 44.1 kHz |
| Frequency Response: | typ. : +0.0/-0.4 dB, 20 Hz to 20 kHz |
| Dynamic Range: | typ.: > 95 dB, 20Hz to 22kHz, 0dBFS |
| THD: | typ.: < -80 dB, 20Hz to 22kHz, -1dBFS |
| A to D Conversion: | 24 bit, 128 x oversampling bitstream, DSR |
| D to A Conversion: | 24 bit, 128 x oversampling bitstream, DSR |
EMC
| Complies with: | EN 55103-1 and EN 55103-2 FCC part 15, Class B, CISPR 22, Class B |
Safety
| Certified to: | IEC 60065 / EN 60065/ UL 60065 / CSA E60065 |
Environment
| Operating Temperature: | 32° F to 122° F (0° C to 50° C) |
| Storage Temperature: | -22° F to 167° F (-30° C to 70° C) |
| Humidity: | Max. 90 % non-condensing |
Control Interface
| MIDI: | In/Out: 5 Pin DIN |
| USB: | USB 1.1, type B |
| Pedal (Exp and Vol): | Four 1/4″ stereo phone jack (2 on GFX01, 2 on Control Board) |
| Relay closure (separate tip and ring connection to sleeve): | 4 relays on two 1/4″ stereo phone jack for amp switching |
Misc
| DC output: | 4 x 9VDC outputs, 200mA totally, Shield(+) Pin(-) |
General
| Finish: | Anodized aluminum front Plated and painted steel chassis |
| Display: | 2×20 character STN-LCD display + 20×7 |
| Footswitches: | Dot-Matrix 18 Illuminated Footswitches (6 with build-in Rotary Encoders) |
| Dimensions: | 20.2″ x 10.5″ x 4.1″ (512.9mm x 265.9mm x 103.4mm) |
| Weight: | 17.2 lb. (7.83 kg) |
| Mains Voltage: | 100 to 240 VAC, 50 to 60 Hz (auto-select) |
| Power Consumption: | <20 W |
| Warranty Parts and labor: | According to EU regulations |
