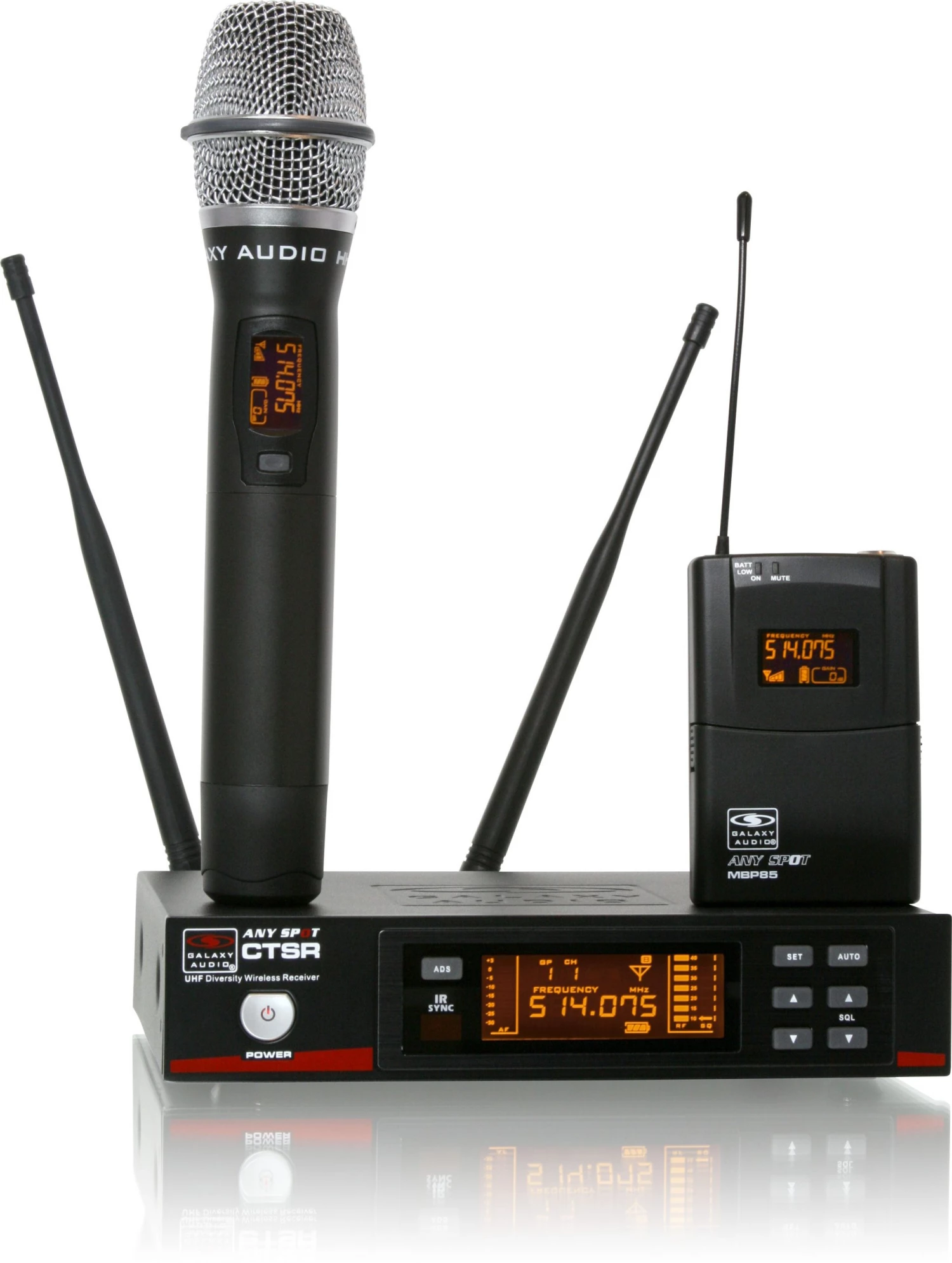

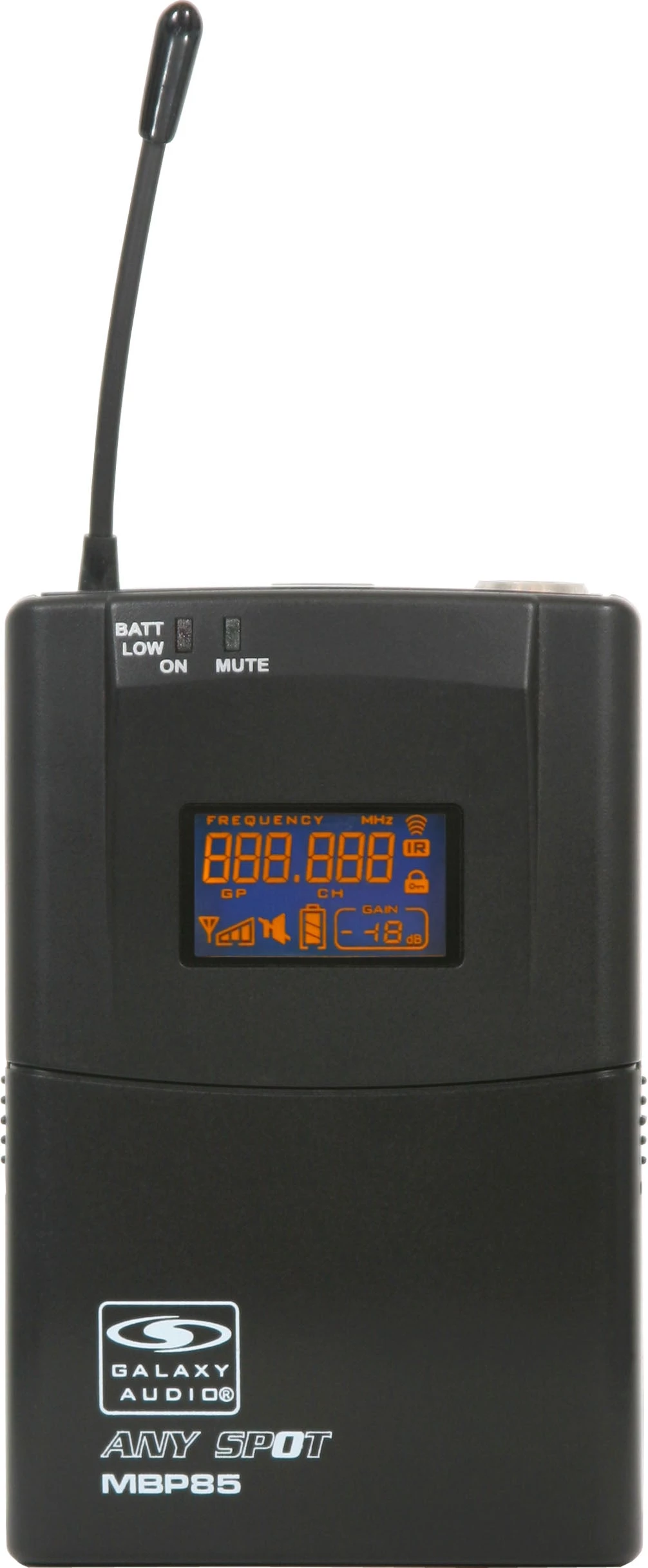

The CTS Series wireless systems feature 920 selectable UHF frequencies, IR Sync, Auto Scan, Squelch Adjustment, BNC detachable diversity antennas, LCD display and much, much more. CTS series also features 16 frequency groups with 14 channels per group; 2 groups can be user defined. Featuring Galaxy’s HH85 handheld transmitter with LCD display (frequency, battery life, mute, gain, RF signal strength) and magnesium alloy metal chassis for road worthy durability, CTS is a tour grade vocal artist wireless microphone system offering reliability and performance for the professional musician. Bundles are also available with any of our high quality Lav or Headset Mics. Single/Dual rack mount kit included.



• 300′ Range
• Auto Scan
• True Diversity
• 920 Selectable UHF Frequencies

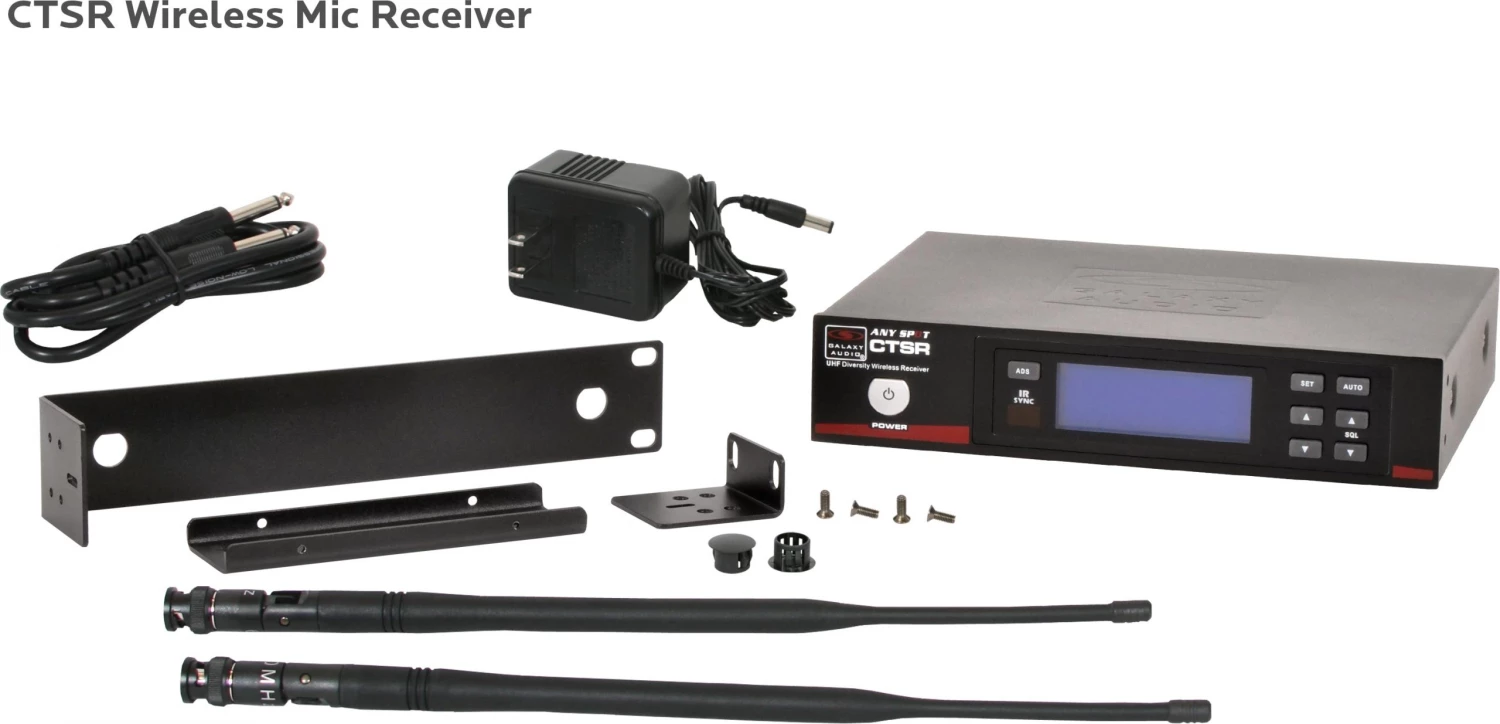

• Single/Dual Rack Mount Included

CTS 920 CHANNEL TOUR GRADE VOCAL ARTIST WIRELESS MICROPHONE SYSTEM (UHF) SPECIFICATIONS

CTS SYSTEM SPECS
Available Frequencies	920
Frequency Ranges	CODE D 584 – 607 MHz CODE J 514 – 537 MHz
Transmitter Output	5 mW, 10 mW, 20 mW
Band	UHF
Operating Range	Under Typical Conditions 300′ (92 m), actual range depends on RF signal absorption, reflection, and interference.
Audio Frequency Response	(+/-3 dB) 60 Hz – 16 Hz
Total Harmonic Distortion	(+/-30 kHz deviation, 1 kHz tone): <1%
Dynamic Range	>90 dB A-weighted
Operating Temperature Range	14° F to 122° F (-10° C to 50° C), battery characteristics may limit this range

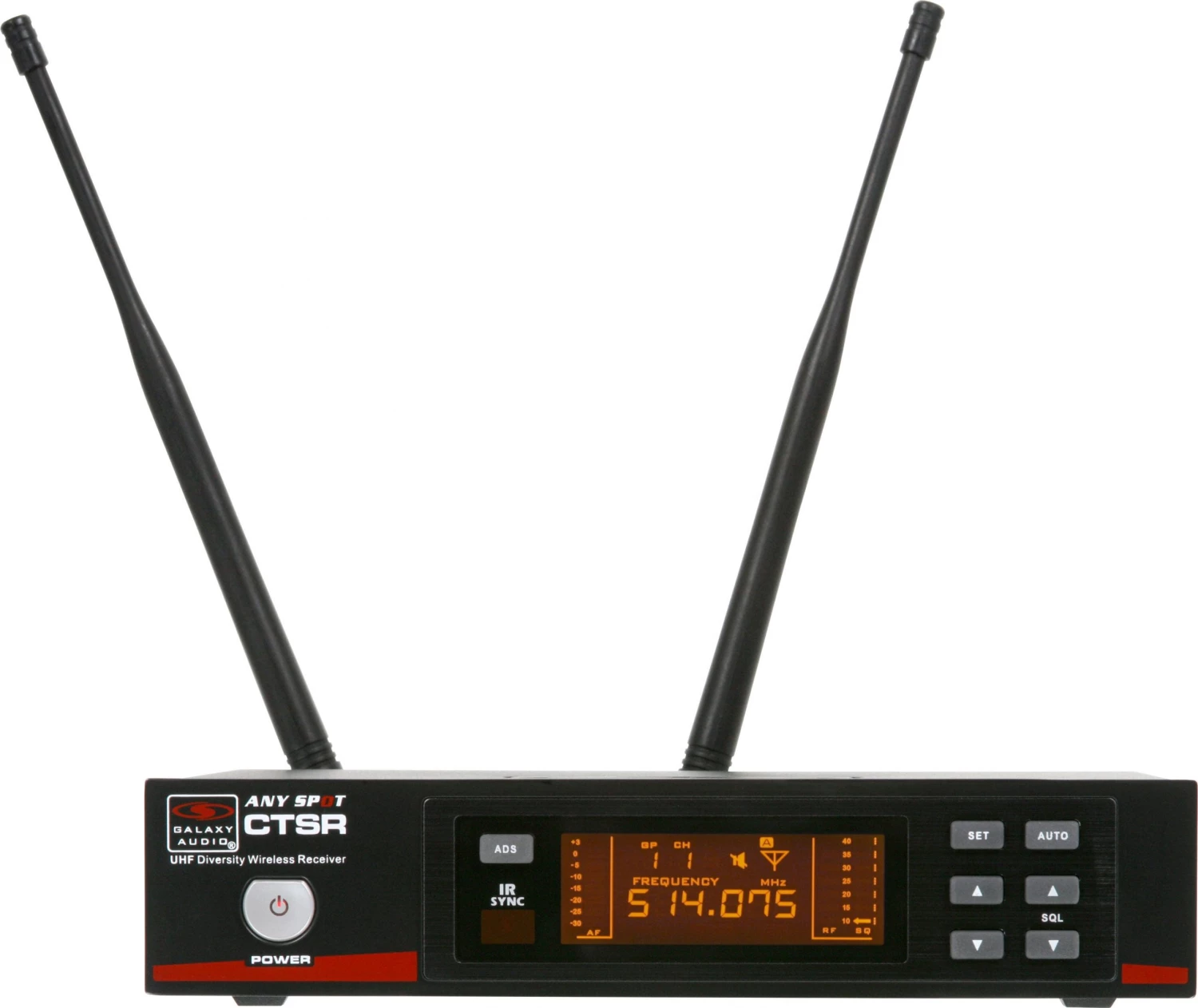

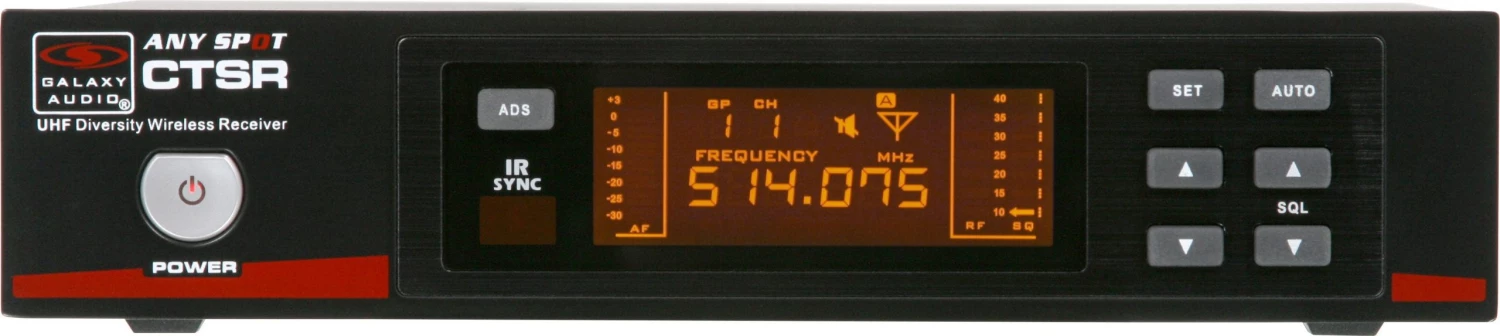

CTSR RECEIVER
Audio Output Level (+/-30kHz deviation 1kHz tone)	XLR Connector (into 600 Ohms load) 6 dBV 1/4″ Connector (into 3 k Ohms load) 0 dBV

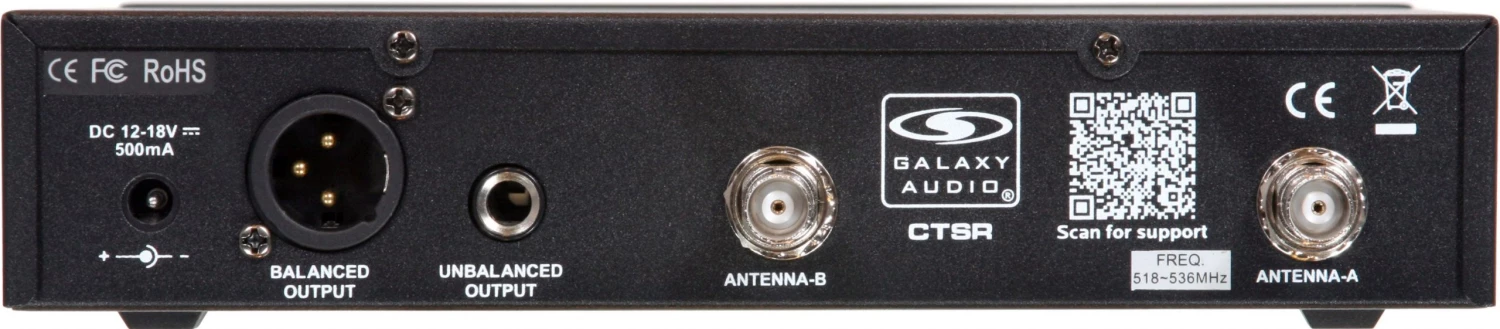

Output Connection	1 Male XLR Balanced, 1/4″ Unbalanced
Output Impedance	XLR Connector 200 Ohms 1/4″ Connector 1 k Ohms
XLR Output	Impedance Balanced Pin 1: Ground (cable shield) Pin 2: Audio + Pin 3: No Audio –
Sensitivity	-102 dBm
Image Rejection	>90 dB
Casing	Metal Chassis EIA STANDARD 1/2 U
Dimensions	1.7″ x “8.3” x 6.3″ (45 x 212 x 160 mm) (HxWxD)
Weight	31.7 oz (900 g)
Power Requirements	12 V DC at 500 mA, supplied by external power supply

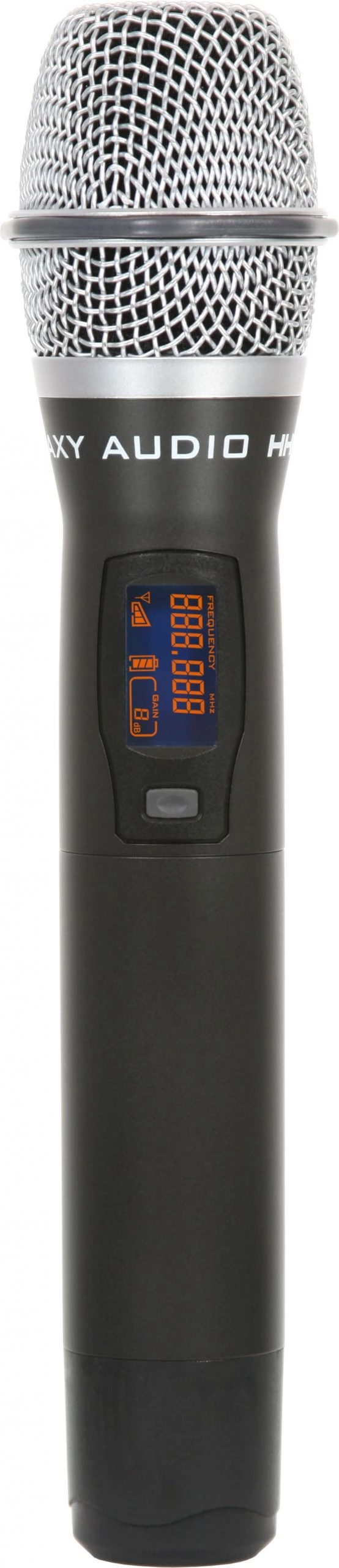

HH85 HANDHELD TRANSMITTER
Max Audio Input Level	-5 dBm (-3 gain)
Gain Adjust	software control -3 dB to +9 dB in 3 dB steps
RF Output	5 mW, 10 mW, 20 mW
Frequency Response	60 Hz – 15 kHz
Dimensions	9.68″ x 2.08″ (246 x 53 mm) (LxDia)
Weight	8.8 oz (250 g) (without batteries)
Power Requirements	2 “AA” size alkaline or rechargeable batteries
Battery Life	About 12 hours (alkaline)
