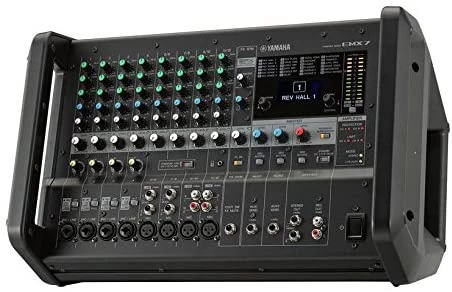

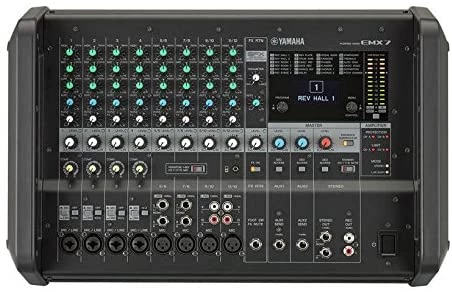

Shivelbine Music YAMAHA EMX7 POWERED MIXER What’s New

Box-type robust and portable powered mixer featuring high efficiency power amplifier of 710W and mixer with comprehensive effects, Flex 9 Graphic Equalizer, speaker preset and built-in feedback suppressor.

• 2x 710W [4Ω], 2x 500W [8Ω] (1kHz THD+N less than 10% CEA2006)
• 2x 600W [4Ω], 2x 400W [8Ω] (1kHz THD+N less than 1% CEA2006)
• Powerful & High Efficiency Class-D Amplifier
• 12 Line Inputs (8 mono + 4 stereo)
• High-Z input (channel 4) to connect guitars or basses directly
• Flex 9 Graphic Equalizer
• Onboard Feedback Suppressor
• Comprehensive, professional 24 different effects
• Yamaha Speaker presets
• Metal chassis for extended operation and robustness
• Large handles for extreme portability and protection
• Universal power supply eliminates concern on power fluctuations

Maximum Output Power (1 kHz)	THD+N <10% 710W + 710W (4 Ω), 500W + 500W (8 Ω) THD+N <1% 600W + 600W (4 Ω), 400W + 400W (8 Ω)
Input Channels	12 channels (max. 8 MIC/12 LINE, 4 Mono + 4 Stereo) CH4: Hi-Z input supported
Output Channels	Speakers (A, B): 1, Aux1 Send: 1, Aux2 Send: 1, Stereo Out (L, R): 1, Rec Out (L, R): 1
Bus	Stereo: 1 AUX: 2 (Including FX)
Input Channel Equalization	COMP Multiple parameters (gain, threshold, ratio) can be adjusted simultaneously with a single control Threshold: +22 dBu to -8 dBu, Ratio: 1:1 to 4:1, Output level: 0 dB to +7 dB Attack time: approx. 25 ms, Release time: approx. 300 ms Equalizer HIGH: 10 kHz ±15 dB (Shelving) MID: 2.5 kHz ±15 dB (Peaking) LOW: 100 Hz ±15 dB (Shelving)
Level Meter	2 × 12 points LED meter (-30, -25, -20, -15, -10, -6, -3, 0, +3, +6, +10, PEAK)
Phantom Power Voltage	+48 V
Built-in Effect/SPX Algorithm	24 programs
Foot Switch	Effect mute on/off
DSP Processing	Feedback suppressor, Graphic equalizer, Speaker processor
Protection	Load Protection: DC-fault Amplifier Protection: Over heat protection, Over current protection, Integral power protection Power Supply Protection: Over heat protection, Over current protection
Power Requirements	AC 100–240 V, 50 Hz/60 Hz
Power Consumption	45W (Idle) / 250W (1/8 Power)
Optional Accessory	Rack-mount brackets: RK-EMX7, Foot switch: FC5
Operating Temperature	0 to +40˚C
Dimensions (H x W x D)	12.1″ (308 mm) x 18.3″ (465 mm) x 12.8″ (325 mm)
Net Weight	20.9 lbs (9.5 kg)





• Powerful & High Efficiency Class-D Amplifier
• Robust But Extremely Portable Design
• Easy Setup, Easy Operation
• Complete Range of Input & Output Channels
• 12 Line Inputs (8 mono + 4 stereo)
• High-Z input (channel 4) to connect guitars or basses directly
• Flex 9 Graphic Equalizer
• Onboard Feedback Suppressor
• Comprehensive, professional 24 different effects
• Yamaha Speaker presets
• Metal chassis for extended operation and robustness
• Large handles for extreme portability and protection
• Universal power supply eliminates concern on power fluctuations
• Optional rack-mount kit available
