Shivelbine Music Zoom R16 USB Audio Interface / Digital Multitrack Recorder / Control Surface What’s New

STUDIO-QUALITY RECORDING WHEREVER YOU GO

The Zoom R16 instantly transforms any environment into a recording studio. Not only does it offer 16 tracks for recording, it can also be used as a DAW control surface and audio interface, allowing you to craft great-sounding music both at home and wherever your travels take you. The R16 has it all: built-in stereo condenser microphones, 8 mic/line/instrument inputs for connecting external gear, a whopping 135 onboard DSP effects—even a chromatic tuner.

R16 FEATURES

• 16-track playback, 8-track simultaneous recording
• Built-in stereo condenser microphones
• Records directly to SD and SDHC cards up to 32 GB for up to 100 track hours
• Records 16/24-bit, 44.1 kHz mono and stereo WAV files
• Eight mic/line level inputs on XLR/TRS combo connectors
• Input 1 can also be used for Hi-Z instrument-level signals such as electric guitar or bass
• +48V phantom power
• Dual balanced ¼” TRS output jacks
• Headphone output with dedicated volume control
• Built-in metronome and chromatic tuner
• 135 send-return and insert DSP effects, including amp/preamp models and mastering algorithms
• User editing of effects parameters, with 390 patch memories for storage
• Independent level, pan and EQ for each track
• Internal track bouncing and mixdown of multitrack to stereo
• Flexible overdubbing and both manual and automatic punch-in/out
• Loop A/B playback with user-defined start/stop points
• Up to 100 marks per recording
• Invert track phase function
• Divide file editing
• Backlit LCD with contrast control for easy viewing in low-light environments
• 8-in/2-out USB audio interface for Macintosh/Windows computers
• High-definition 24-bit/96 kHz playback capability with DAW software
• Control Surface functionality (Mackie Control emulation)
• Full mixing and transport controls for Cubase, Logic, Ableton Live, and other DAWs
• Two R16s can be synchronized via USB for 32 tracks of playback and 16 tracks of simultaneous recording
• USB bus power
• SD card reader function
• Runs on 6 AA batteries, with alkaline battery life of more than 4.5 hours
• AC adapter included
• Steinberg Cubase LE DAW software included

SPECS RECORDER TRACK COUNT:16 (mono)
MAXIMUM NUMBER OF SIMULTANEOUS RECORDING TRACKS:8
MAXIMUM NUMBER OF SIMULTANEOUS PLAYBACK TRACKS:16 audio + metronome
RECORDING FORMAT:44.1 kHz, 16/24-bit WAV format
MAXIMUM RECORDING TIME:
200 minutes/1 GB (mono tracks)
PROJECTS:1000
MARKERS:100/projectLOCATOR:Hours/minutes/seconds/milliseconds and bars/beats/ticksFILE EDITING:Divide
TRACK PARAMETERS:3-band equalizer, pan (balance), effect send ×2, invert
STEREO LINK:Tracks 1 / 2 – 15 / 16 selectable
OTHER FUNCTIONS:
Punch-in/out (manual, auto), Bounce, A-B repeat, Undo/Redo EFFECTS ALGORITHMS:8 (CLEAN, DISTORTION, ACO/BASS SIM, BASS, MIC, DUAL MIC, STEREO, MASTERING)
PATCHES:
330 insert, 60 send-return
EFFECTS MODULES:
7 insert, 2 send TUNER TYPEChromatic, guitar, bass, open A/D/E/G, D modal METRONOME TONES:5
BEAT:
No accent, 1 / 4 – 8 / 4, 6 / 8
TEMPO
: 40.0 – 250.0 BPM HARDWARE MIXER FADERS:9 (mono x 8, master x 1)
RECORDING MEDIA:SD card (16MB – 2 GB), SDHC card (4 – 32 GB)
ANALOG-DIGITAL CONVERSION:96 kHz 24-bit delta-sigma ADC
DIGITAL-ANALOG CONVERSION:96 kHz 24-bit delta-sigma DAC
DISPLAY:
20-digit 2-line custom LCD (with backlight)
LEVEL METERS:
4-segment LEDINPUTS:

Input 1-8 Type: XLR/TRS combo jacks Input impedance: (Balanced input) 1KΩ balanced (2 hot), (Unbalanced input) 50 KΩ unbalanced (1 with Hi-Z input impedance 470 KΩ (Hi-Z on), 5 / 6 with phantom power) Phantom Power: +48V Input level: -50 dBm < continuous < +4 dBmBuilt-in stereo microphones Type: Omnidirectional condenser microphones Gain: -50 dBm < continuous < +4 dBm
OUTPUTS:Output | Type: TRS phone (balanced)Phones| Standard stereo phone jack 20 mW x 2 (32 Ω load) USB MINI-B TYPE (USB 2.0)Operation as audio interface/ control surface and mass storage USB AUDIO INTERFACE NUMBER OF RECORDING CHANNELS:8
NUMBER OF PLAYBACK CHANNELS:2
BIT RATE:
24
SAMPLING FREQUENCY:
44.1, 48, 88.2, 96 kHz

COMPATIBILITY:Windows® 8 / 8.1 / 10 / 11, Intel® Pentium® 4 1.8 GHz or faster, RAM 1 GB or more (*USB 2.0 compatible port, Intel chipsets recommended)macOS 10.14 ~ 12, Intel® Core Duo 1.83 GHz or faster and RAM 1 GB or more (*USB 2.0 compatible port, Intel chipsets recommended) POWER AC ADAPTERDC 5V 1A (Zoom AD-14)BATTERIES6 AA batteries (4.5-hour continuous operation time with backlight on and phantom power off) OTHER
DIMENSIONS376 mm (W) × 237.1 mm (D) × 52.2 mm (H)WEIGHT1.3 kg

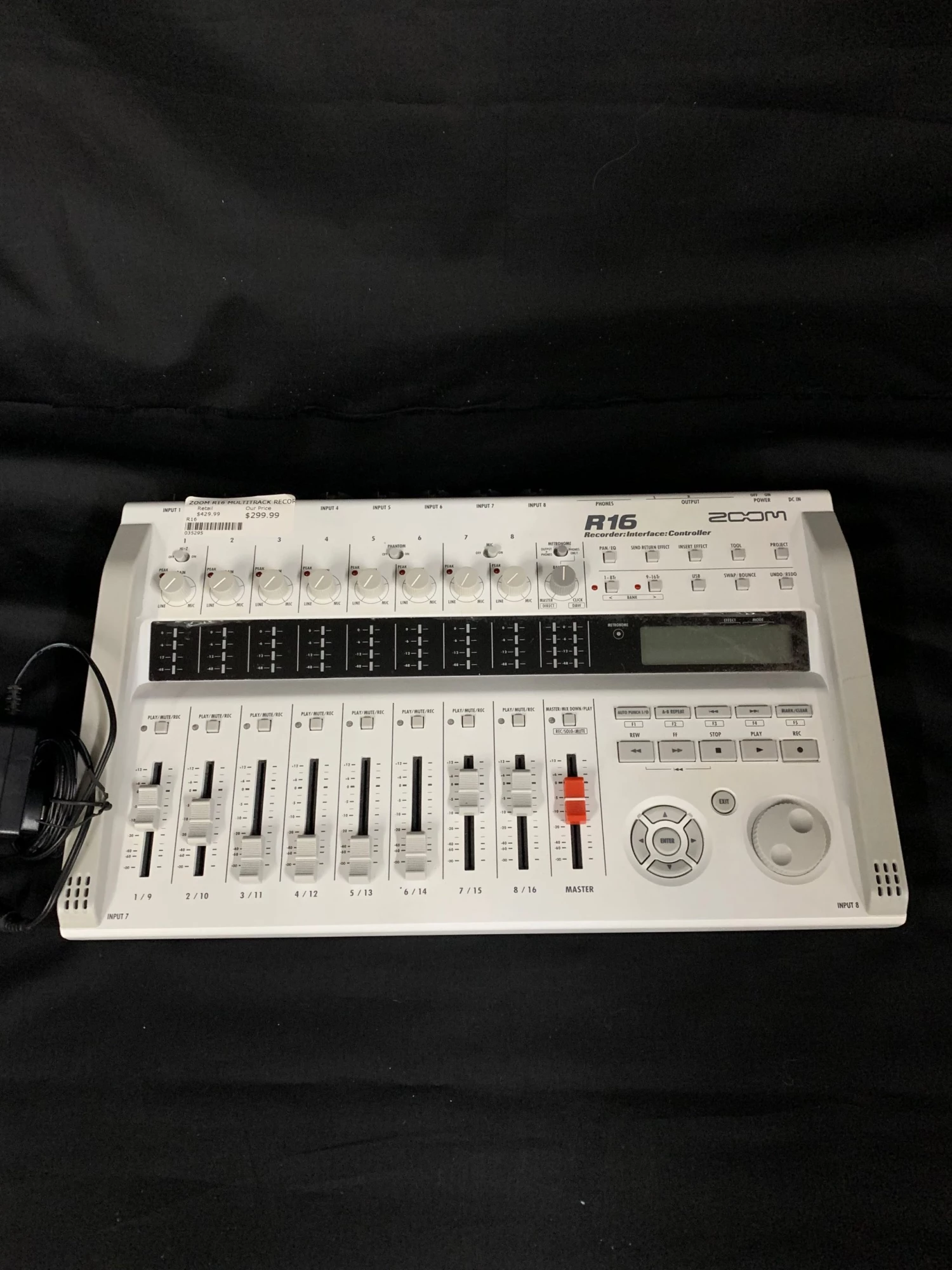

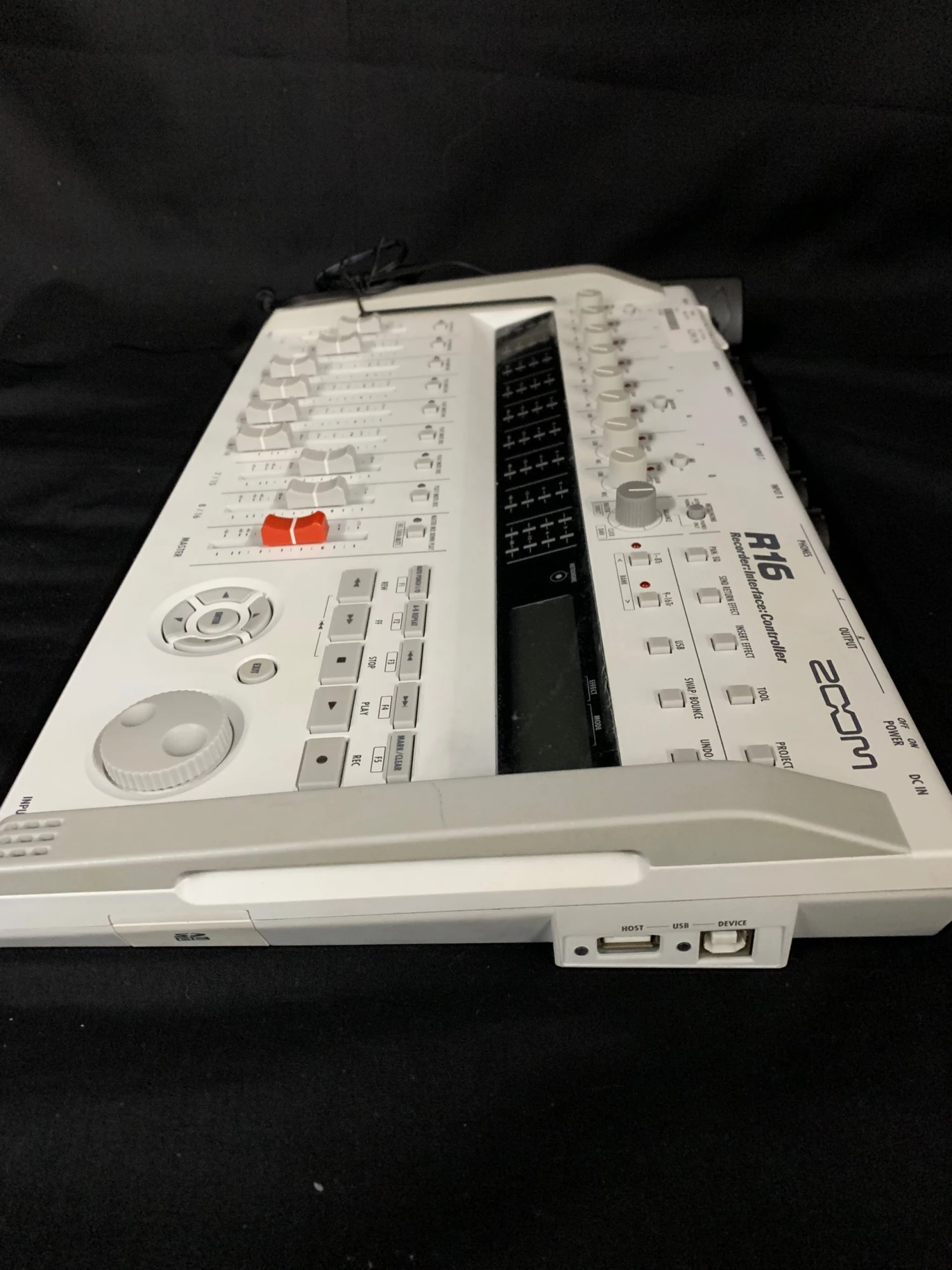

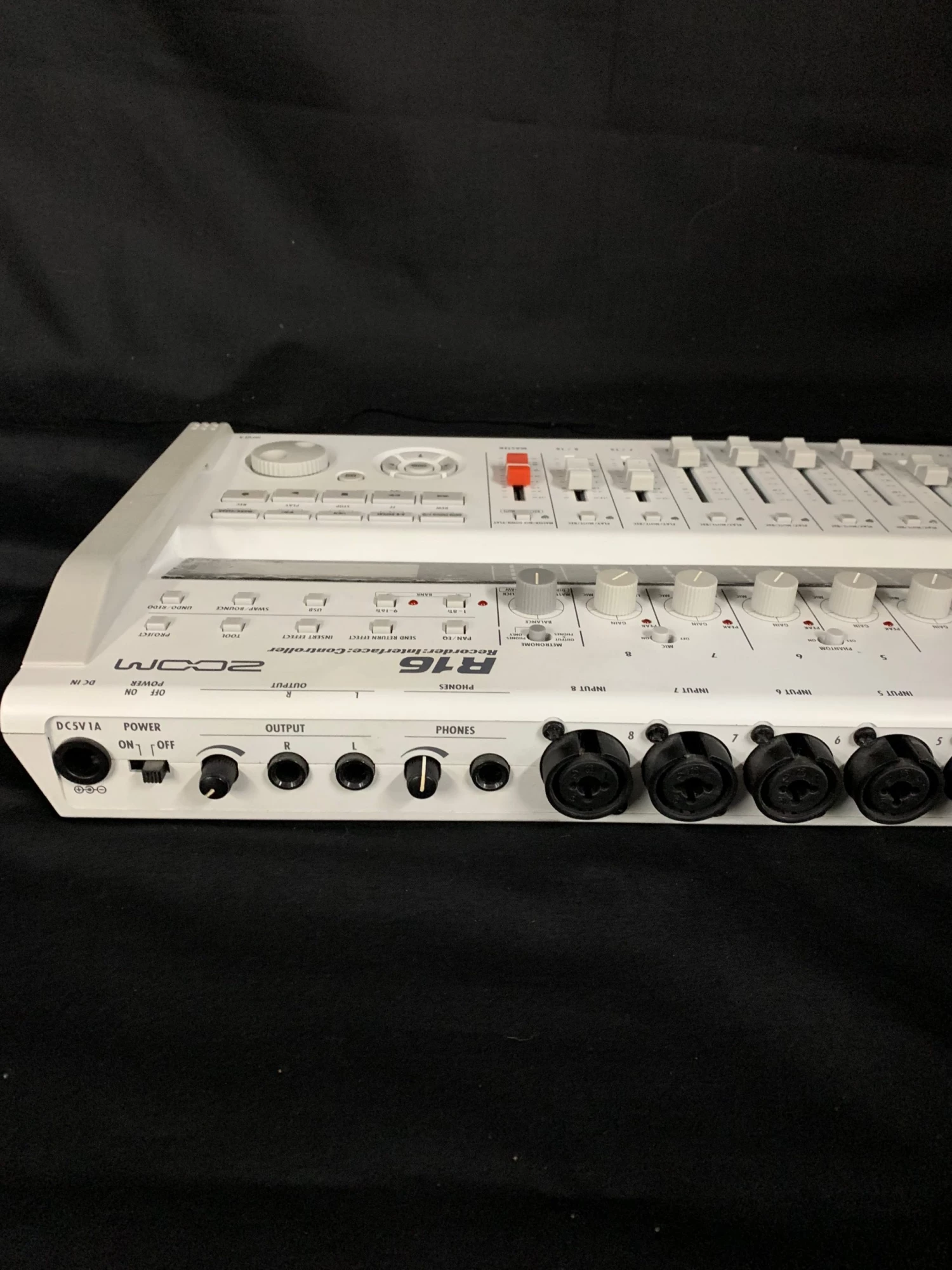

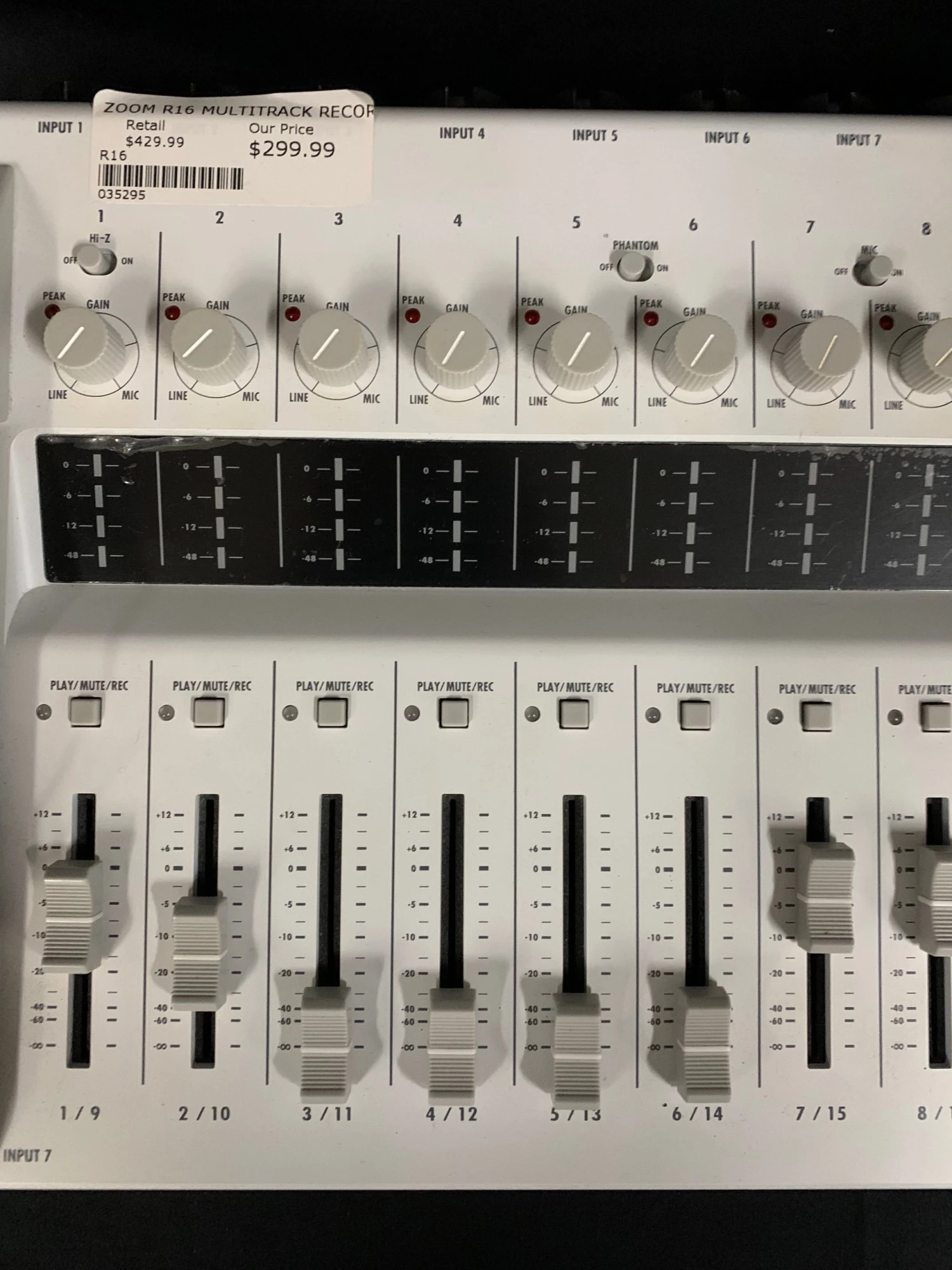

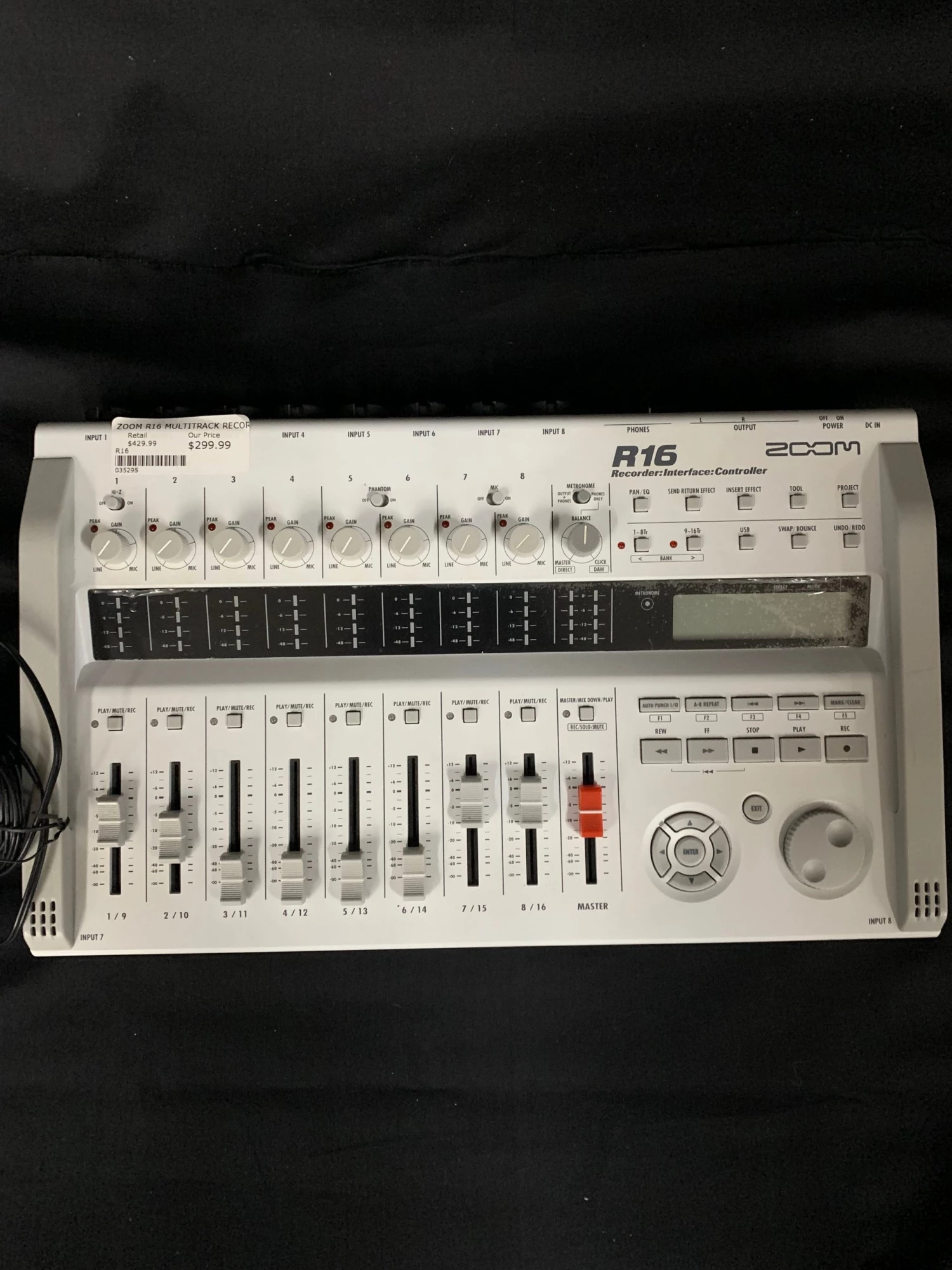

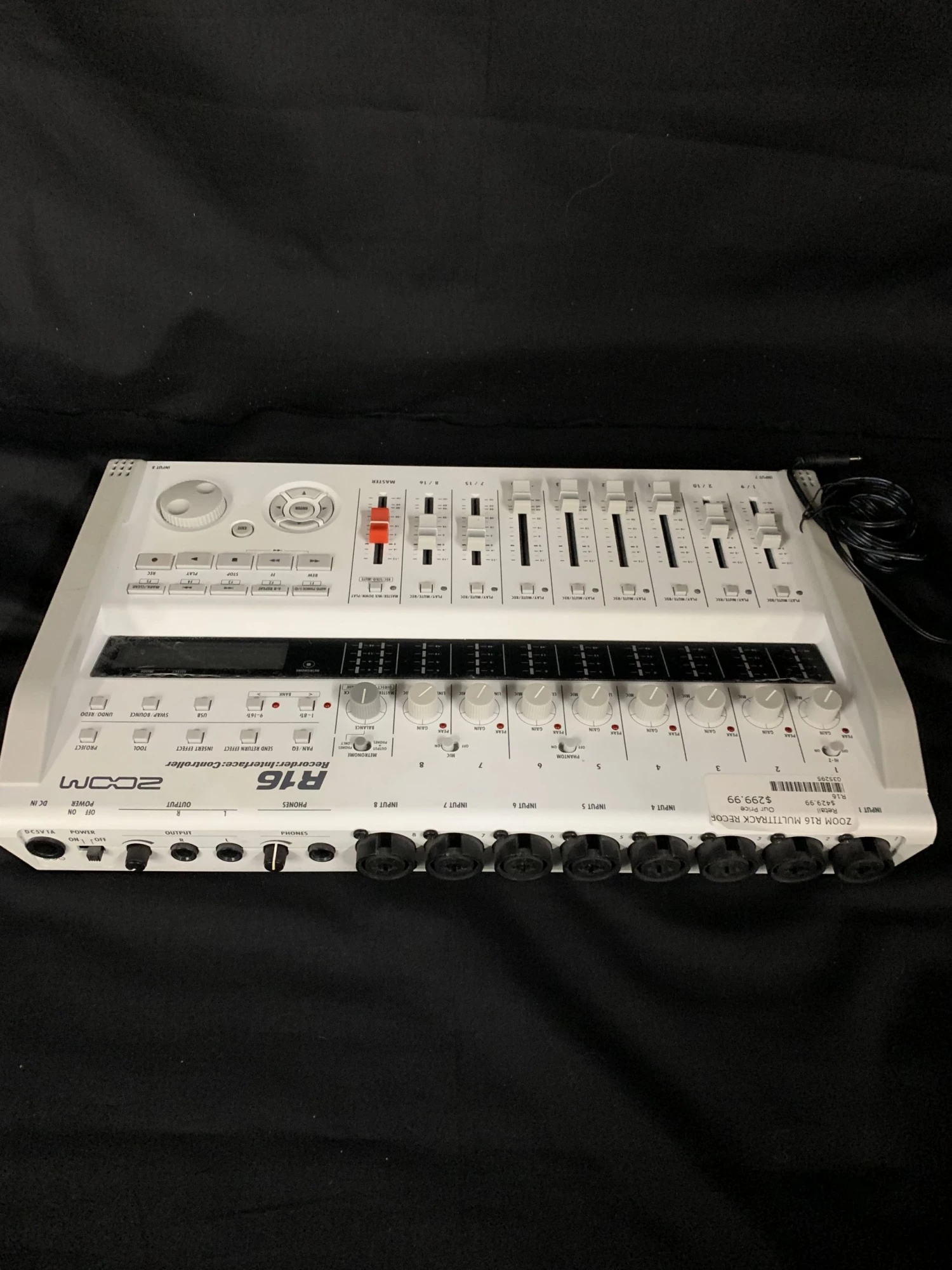

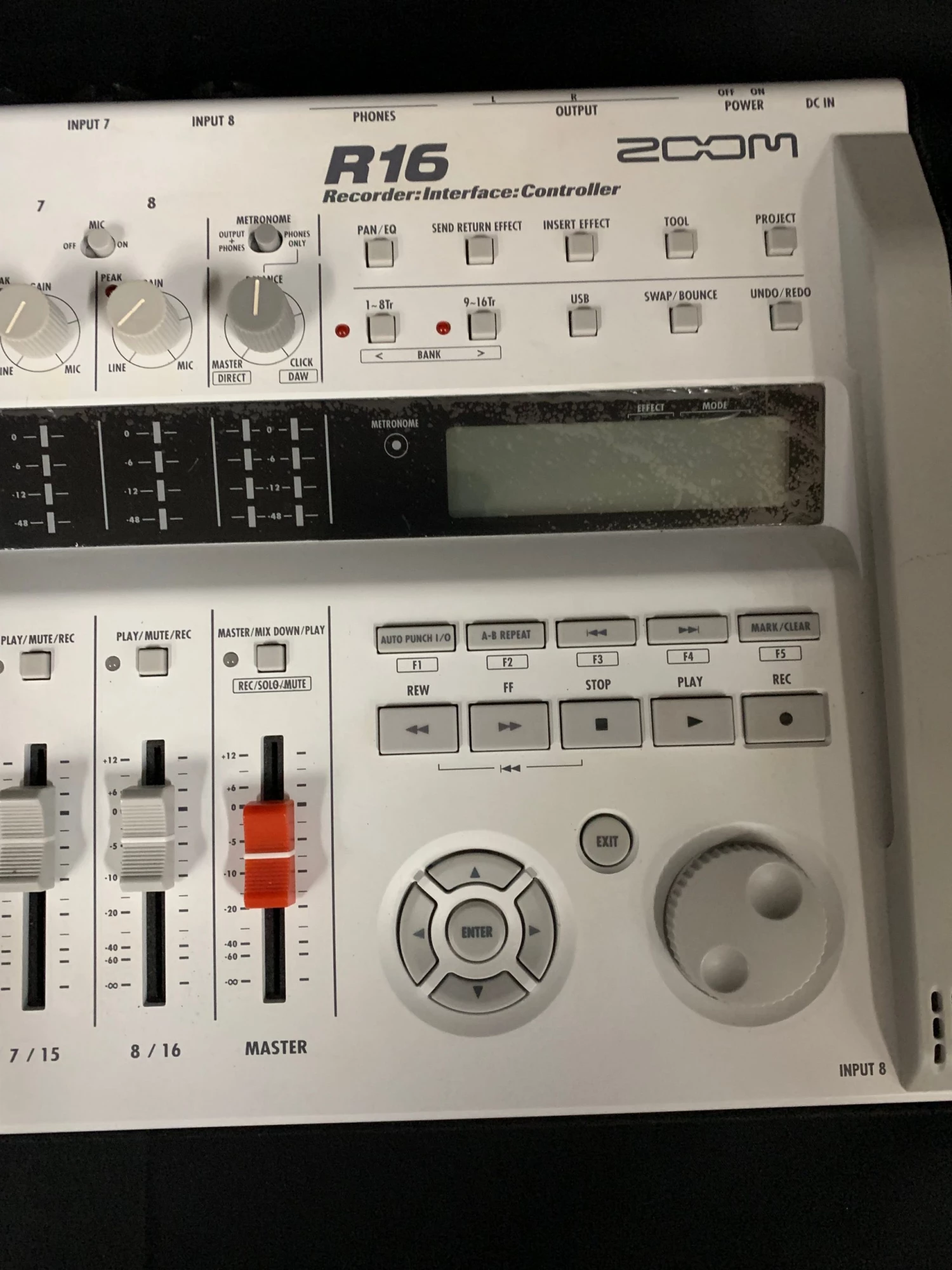

Slightly used still has plastic over the display and only slight discoloration in a spot or two works great like it should.
