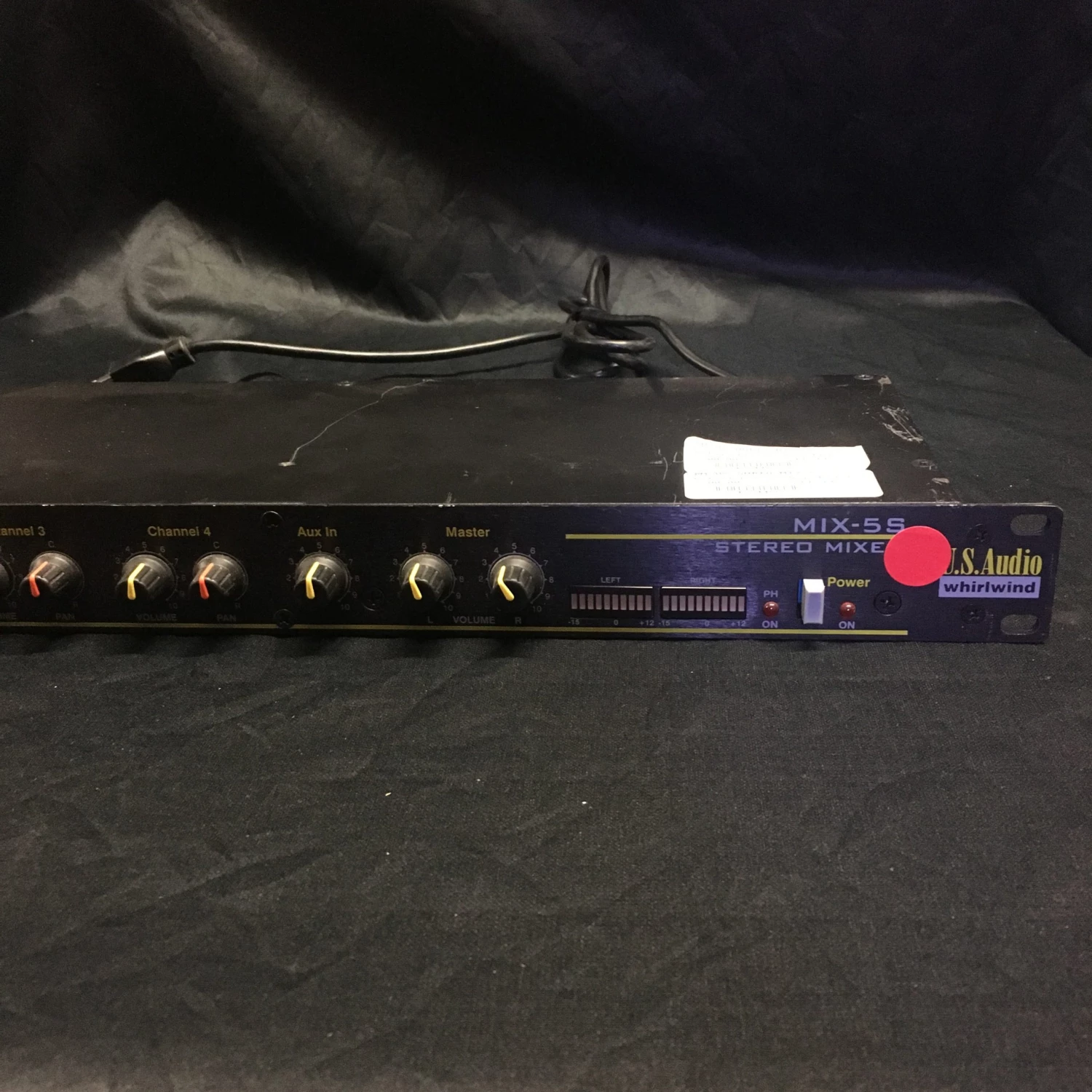

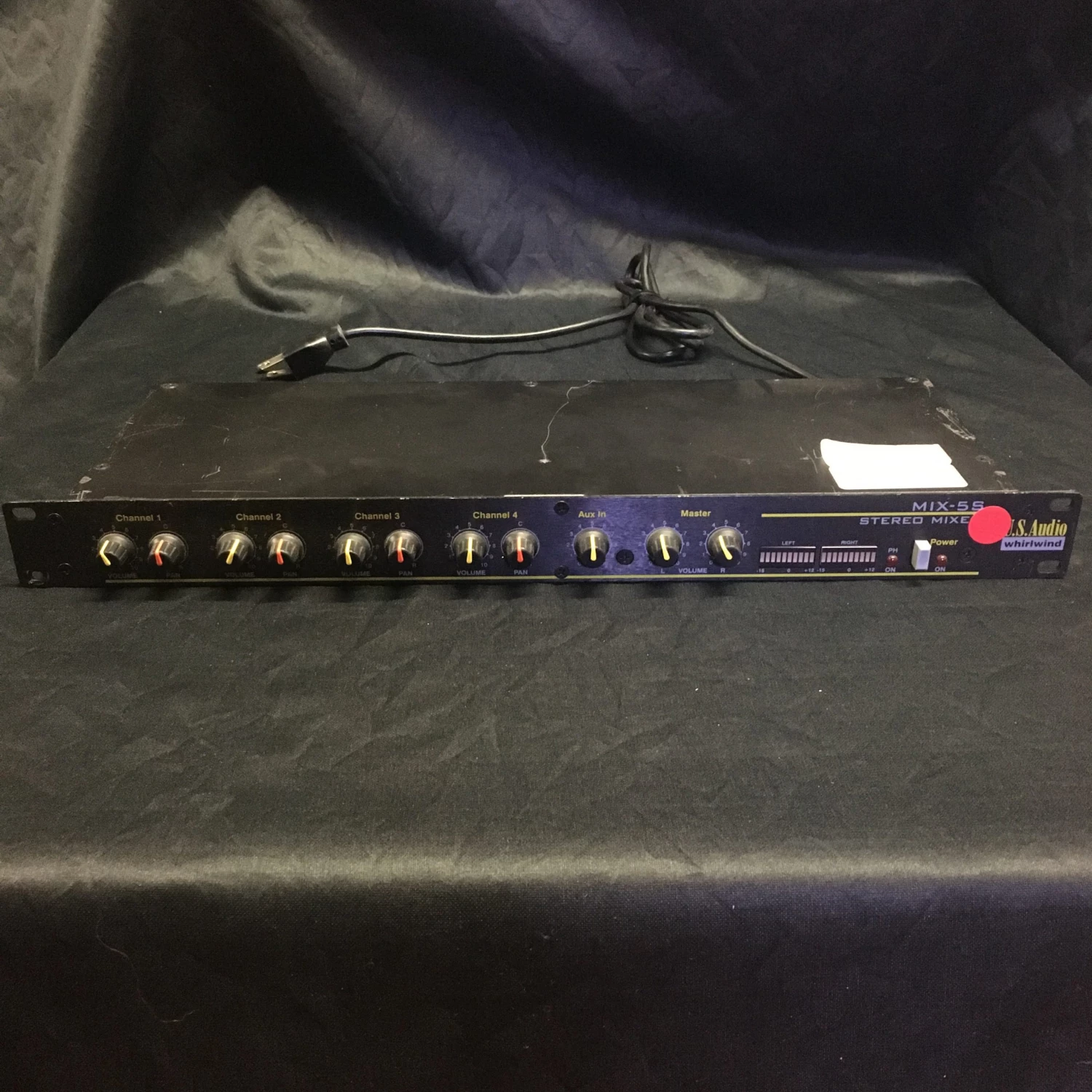

U.S. Audio Whirlwind Mix-5S Strings

The MIX-5 is a mono version of the MIX-5S. The stereo aux input actively sums a left / right input signal to mono while maintaining separation of the inputs.

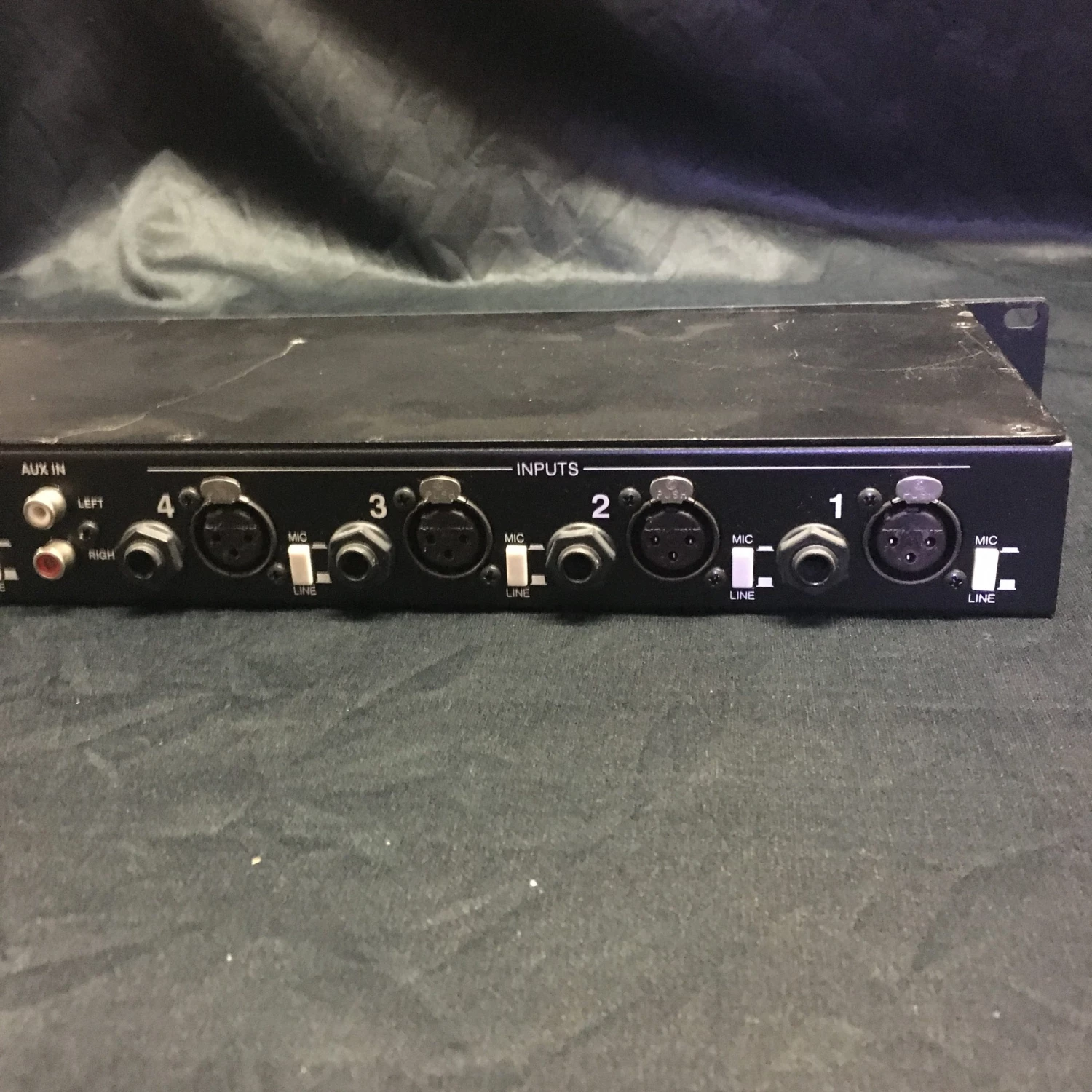

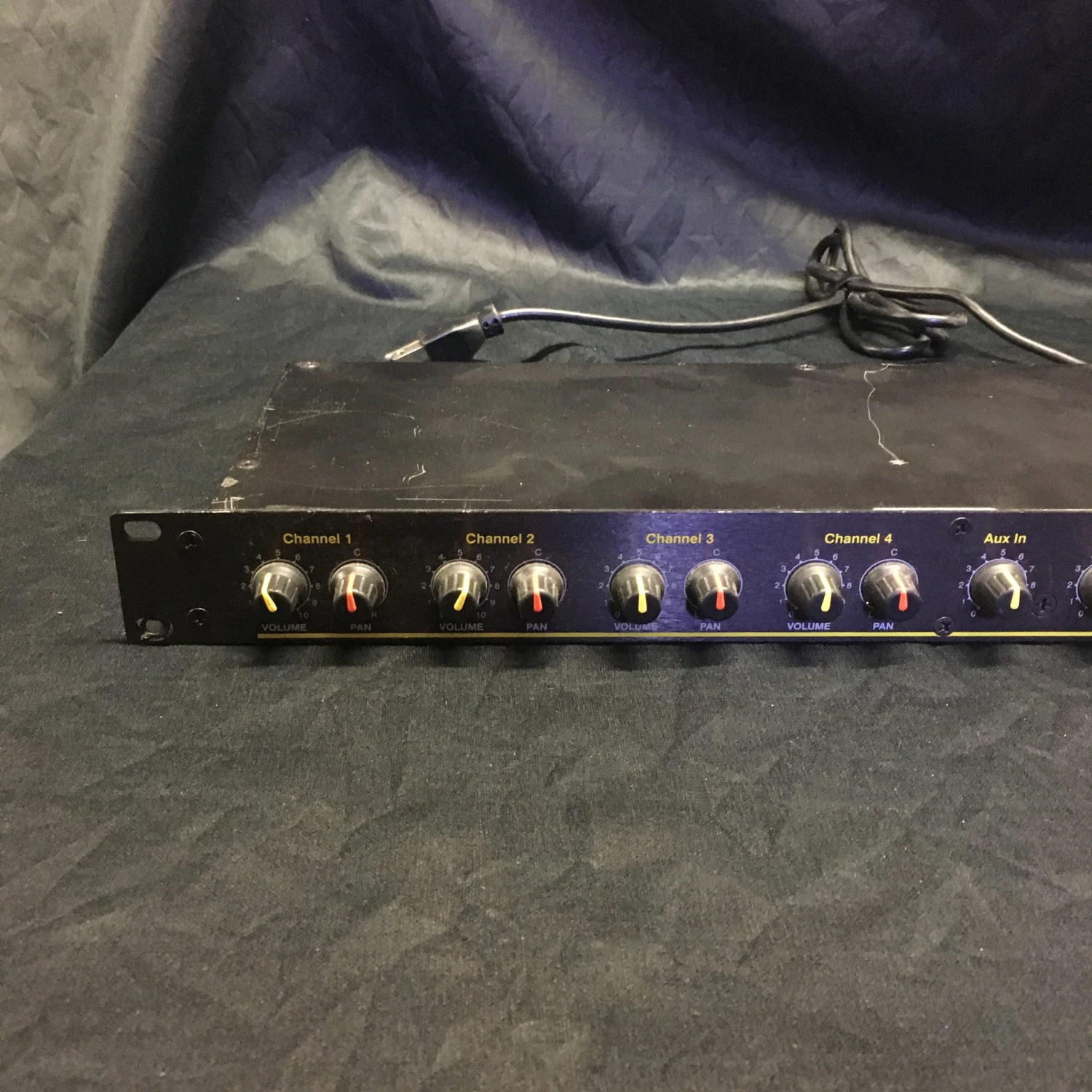

This professional-quality, all-purpose mixer is ideal for sound contracting, broadcasting, sub-mixing, paging, and PA applications. 4 mono input channels with pan controls, each with XLR and 1/4″ connectors which operate balanced or unbalanced. Rear switches select mic or line level for each input. Stereo XLR and 1/4″ TRS outputs feature their own drive circuits for isolation and the XLR outputs are switchable for mic or line level operation.

ModelMIX-5 Product TypeMono Mixer Frequency ResponseSpecifications Line mode± 3dB, 6Hz to 36kHz -0.4dB @ 20Hz -1dB @ 20kHz Mic mode± 3dB, 18Hz to 36kHz -2.5dB @ 20Hz -1dB @20kHz Maximum Input LevelSpecifications Line mode+22 dBm unbalanced +28 dBm balanced Mic mode- 2 dBm unbalanced +4 dBm balanced Input ImpedanceSpecifications Line mode2k Ohm balanced or unbalanced Mic mode600 Ohm balanced 2k Ohm unbalanced Maximum Output LevelBalanced (+28dBm) Unbalanced (+22dBm) Output Impedance XLRsSpecifications Line mode100 Ohms Mic mode200 Ohms Output Impedance TRSUnbalanced (60 Ohms) Balanced (120 Ohms) Rise Time8uSec Stereo Separation>65dBm C.M.R. (Common Mode Rejection) of Input> 55dBm @ 60Hz Attenuation Of Llne/Mic Output Switch20dBm Isolation Between 1/4” and XLR Outputs>l00dBm Aux Input Impedance10k Ohms Maximum Level Aux Input+22dBm THD+N (Total Harmonic Distortion + Noise)Line Mode @ l4dBm of Gain .005% Line Mode @ Unity Gain .012%
